Place of Origin : Beijing,China
Brand Name : Holtop
MOQ : 1pc
Price : Negotiable
Packaging Details : box
Delivery Time : Two weeks
Payment Terms : TT
Supply Ability : 200000 units per year
Model Number : Hydronic Industrial Air Conditioning System Packaged Hvac Air Handler Unit
Certification : CE
Type : 80B
Structure : Pure panel structure smooth internal side
Insulation materia : Rockwool
Airflow range (m3/h) : 100000-320000
Casing mechanical strength : EN1886-2007 D1
Air leakage : EN1886-2007 L1
Holtop Industrial Air Conditioning System Solutions
● Mainly Application: modern factories such as automobiles, electronics, aerospace, and pharmaceuticals.
● Funtions: Indoor air temperature conditioning, heat recovery fresh air ventilation, air cleanliness, air circulation, humidity control, etc HVAC Solutions.
Products Detail
Holtop Industrial Air Conditioning System Solutions
Industrial HVAC Projects Air conditioning system Customize support
50U series modular air handling unit
50B series combined air handling unit
80B series modular air handling unit
Type | 50B | 80B | 80C |
Structure | Frame structure Expose beam connection | Frame structure Expose beam connection | Pure panel structure smooth internal side |
Insulation material | PU/Rockwool | PU/Rockwool | Rockwool |
Insulation thickness (mm) | 50 | 80 | 80 |
Density (kg/m3) | ≥45/60-120 | ≥45/60-120 | 60-120 |
Flame retarded class | B1/A | B1/A | A |

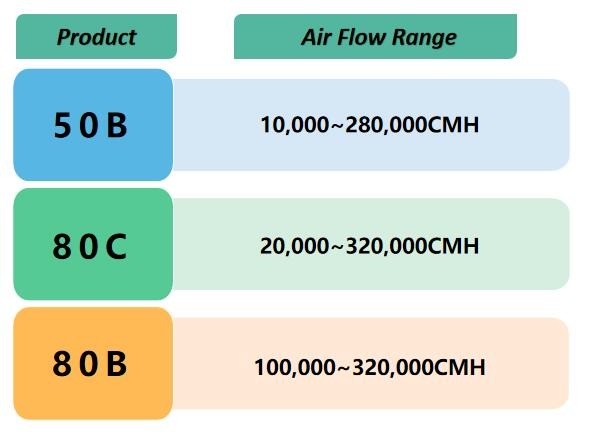

Airflow range (m3/h) | 10000-280000 | 20000-320000 | 100000-320000 |
Total pressure (Pa) | ≤2800 | ≤3200 | ≤4000 |
Casing mechanical strength | GB14294-2008 | GB14294-2008 | EN1886-2007 D1 |
Thermal transmittance | EN1886-2007 T2 | EN1886-2007 T2 | EN1886-2007 T2 |
Cold bridge | EN1886-2007 TB2 | EN1886-2007 TB2 | EN1886-2007 TB2 |
Air leakage | Smaller than clean room AHU | Smaller than clean room AHU | EN1886-2007 L1 |
Comply standard | GB | GB | European |
![]() |
Hydronic Industrial Air Conditioning System Packaged Hvac Air Handler Unit Images |
