Holtop industrial air treatment equipment is specially designed for the automotive manufacturing industry. It offers customized solutions for complex scenarios such as the high cleanliness requirements of the painting workshop, the precise temperature and humidity control in the assembly workshop, and the dust purification in the welding workshop.
Industrial AHU is an air handling equipment which is designed according to specified project need and combined with cooling, heating (water/steam/gas burning etc), humidifying/dehumidifying(steam/spray/wheeletc),air-purifying (washing/filtration/electrostatic etc), energy recovery, and some relevant functions to create an optimal indoor climate to satisfy the production technical procedure need of the industrial workshop.
Products Detail
Industrial AHU is an air handling system equipments which is designed according to specified projects need and combined with cooling, heating (water/steam/gas burning etc), humidifying/dehumidifying (steam/spray/wheel etc), air cleaning (washing/filtration/electrostatic etc), energy recovery, and some relevant functions to create an optimal indoor climate to satisfy the production technical procedure need of the industrial workshop.
Holtop have been devoting ourselves on industrial building air quality solution for decades of years from unit design, manufacturing, factory pre-assembly and testing, shipping, to site installation, commissioning, training and maintenance. We provide flexible options to meet the requirements of your manufacturing facility or process. We have 50B, 80C, 80B series for different capacity range.
Holtop Industrial air handling units Models
| Type | 50B | 80C | 80B |
| Structure | Frame structure Expose beam connection | Frame structure Expose beam connection | Pure panel structure smooth internal side |
| Insulation material | PU/Rockwool | PU/Rockwool | Rockwool |
| Insulation thickness (mm) | 50 | 80 | 80 |
| Density (kg/m3) | ≥45/60-120 | ≥45/60-120 | 60-120 |
| Flame retarded class | B1/A | B1/A | A |

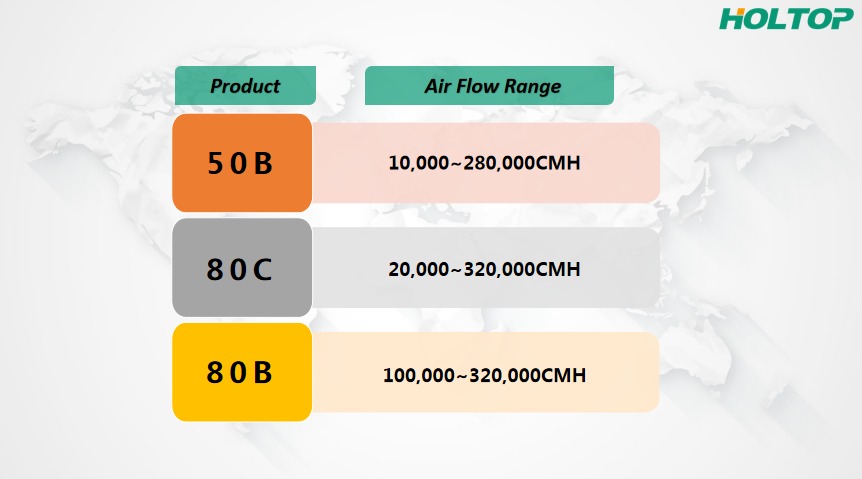

| Airflow range (m3/h) | 10000-280000 | 20000-320000 | 100000-320000 |
| Total pressure (Pa) | ≤2800 | ≤3200 | ≤4000 |
| Casing mechanical strength | GB14294-2008 | GB14294-2008 | EN1886-2007 D1 |
| Thermal transmittance | EN1886-2007 T2 | EN1886-2007 T2 | EN1886-2007 T2 |
| Cold bridge | EN1886-2007 TB2 | EN1886-2007 TB2 | EN1886-2007 TB2 |
| Air leakage | Smaller than clean room AHU | Smaller than clean room AHU | EN1886-2007 L1 |
| Comply standard | GB | GB | European |

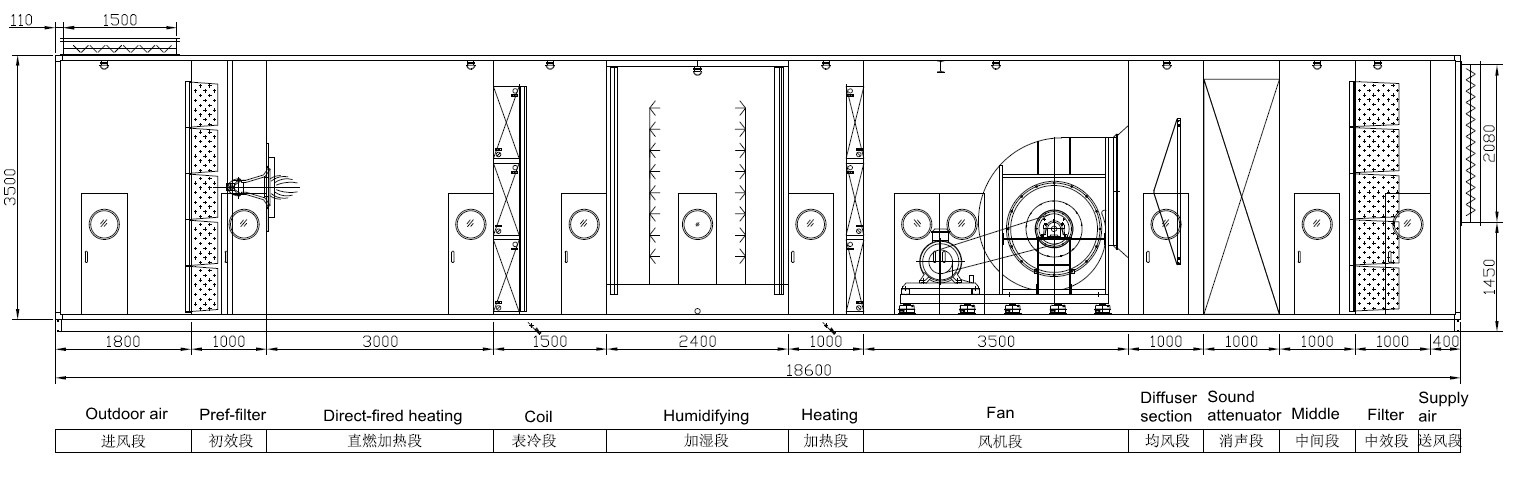

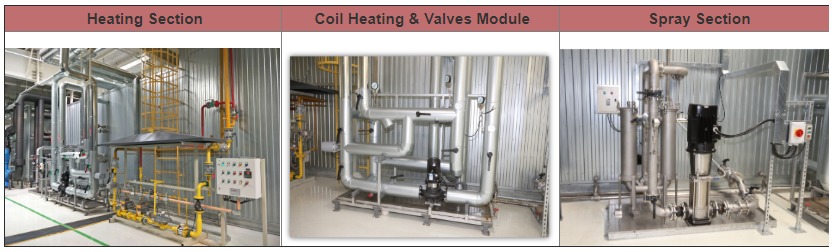

Industrial air handling units main sections
Industrial air handling units projects for automobile manufacturing applications
Industrial air handling units projects for automotive production factory
